PLATH SIR 5110 & 5115 HF
Airspy is a line of popular Software-Defined Radio (SDR) receivers developed to achieve high performance and affordable price. The goal is to satisfy the most demanding telecommunications professionals and radio enthusiasts while being a serious alternative to both cost sensitive and higher end receivers. The receivers can bee used with go2MONITOR, SDR-Console or SDR#.
SDR# contains also SPY Server an application for remote SDR operation
Key Facts
- go2signals support
- coherent bandwidth of 29.5 MHz (analogue and digital) using direct sampling
- SIR 5110 Exceptional SFDR ≥ 105 dB
- SIR 5115 Exceptional SFDR ≥ 125 dB
- SIR 5110, 16 x 768 kHz bandwidth (12.288 MHz overall)
- SIR 5115, 40 x 768 kHz bandwidth (29.5 MHz overall)
- Min. detectable signal -139 dBm @ 125 Hz
- SIR 5110 up to 120 virtual narrowband receivers
- SIR 5115, up to 600 virtual narrowband receivers
- No internal spurious responses
- optimized and instantaneous monitoring of all signal of interest by dividing the coherent bandwidth into multiple (16/40) flexible digital sub-bands
- exceptional technical specifications lead to excellent wideband I/Q streaming data

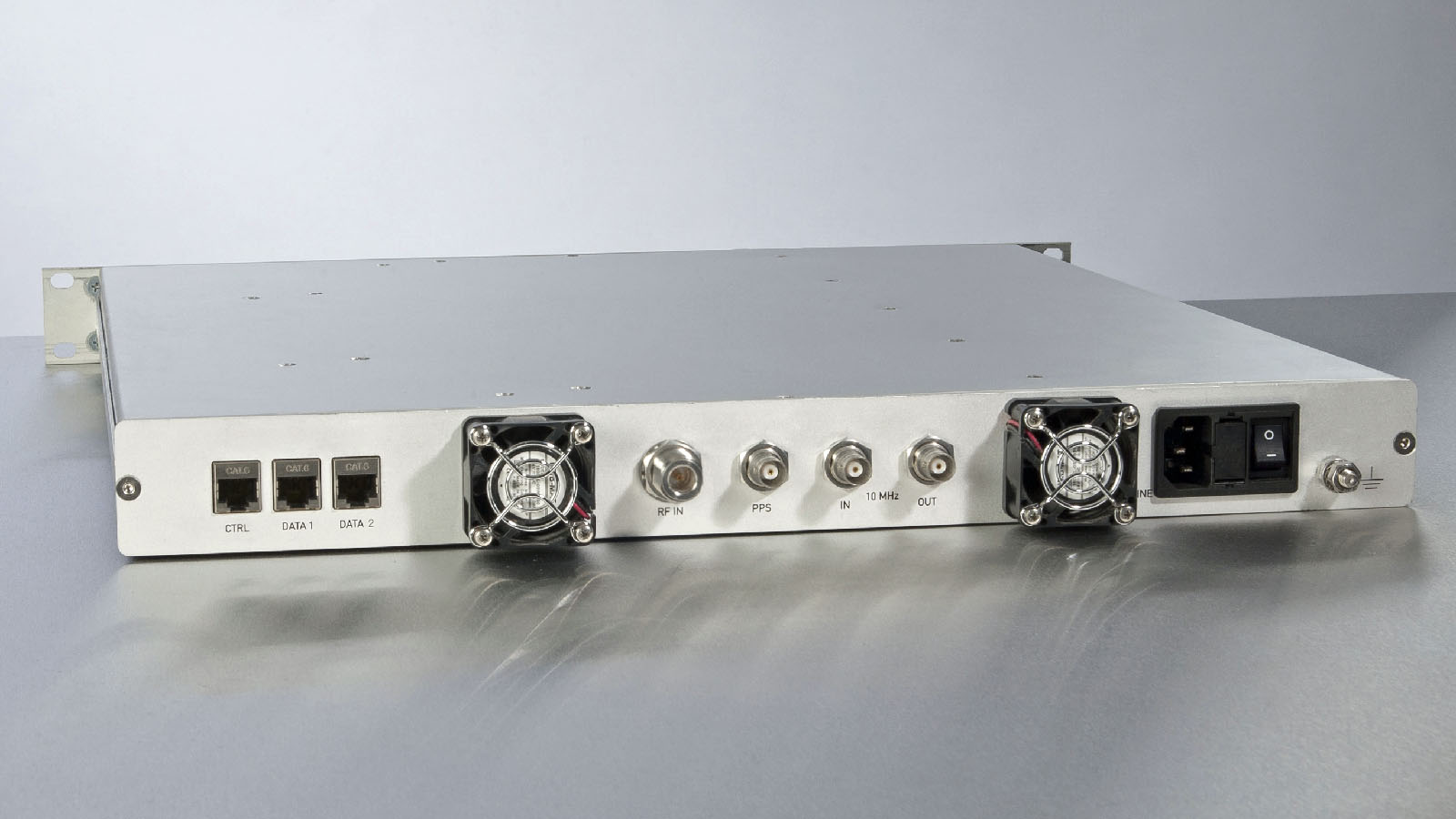

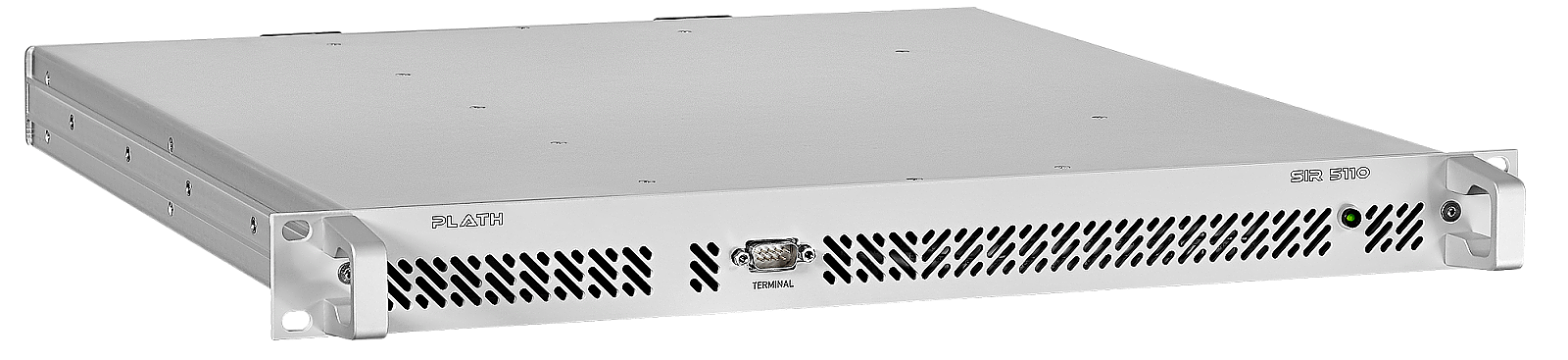

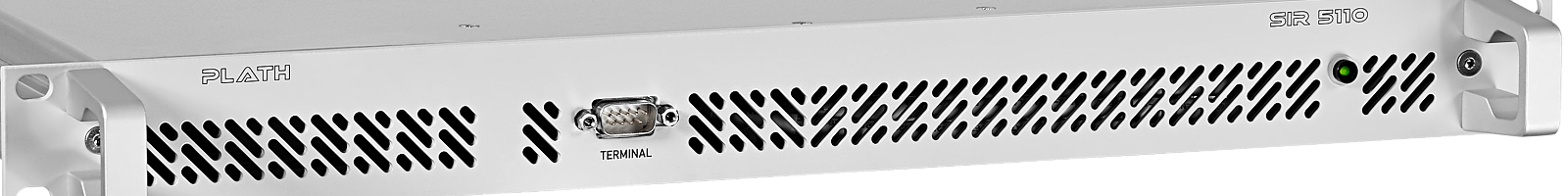

The SIR 5110 is a digital wideband monitoring receiver covering 0.5 to 30 MHz using direct sampling. The receiver provides a coherent digital bandwidth of 12.288 MHz which can be used in one block or in freely distributed subchannels over the entire frequency range. With its excellent technical specifications, the SIR 5110 allows simultaneously interception of multiple bands at the same time - thereby replacing multiple normal receivers. The SIR 5110 competes effectively with dedicated narrowband receivers and has some of the best technical features of any digital wideband receiver.

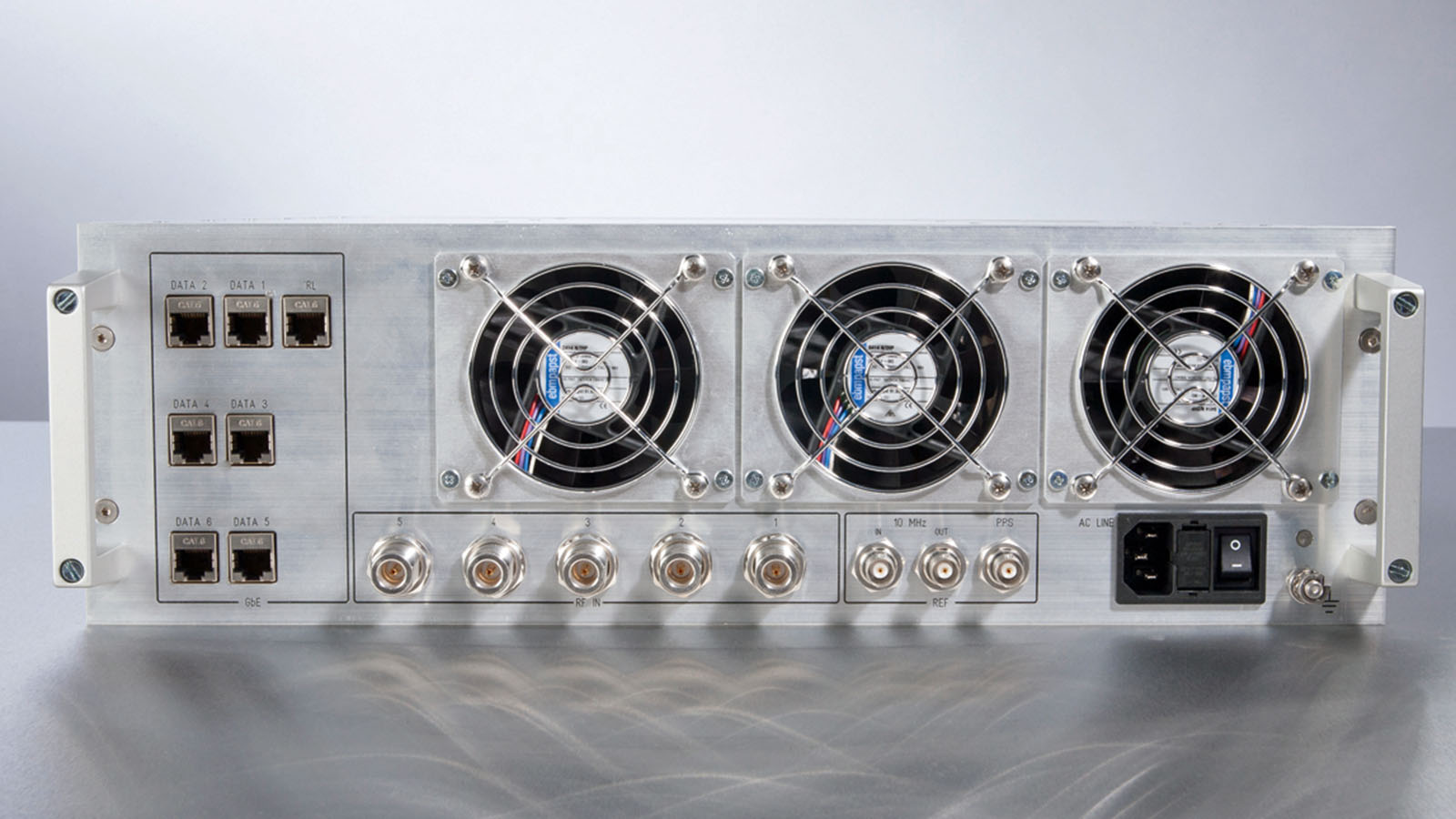

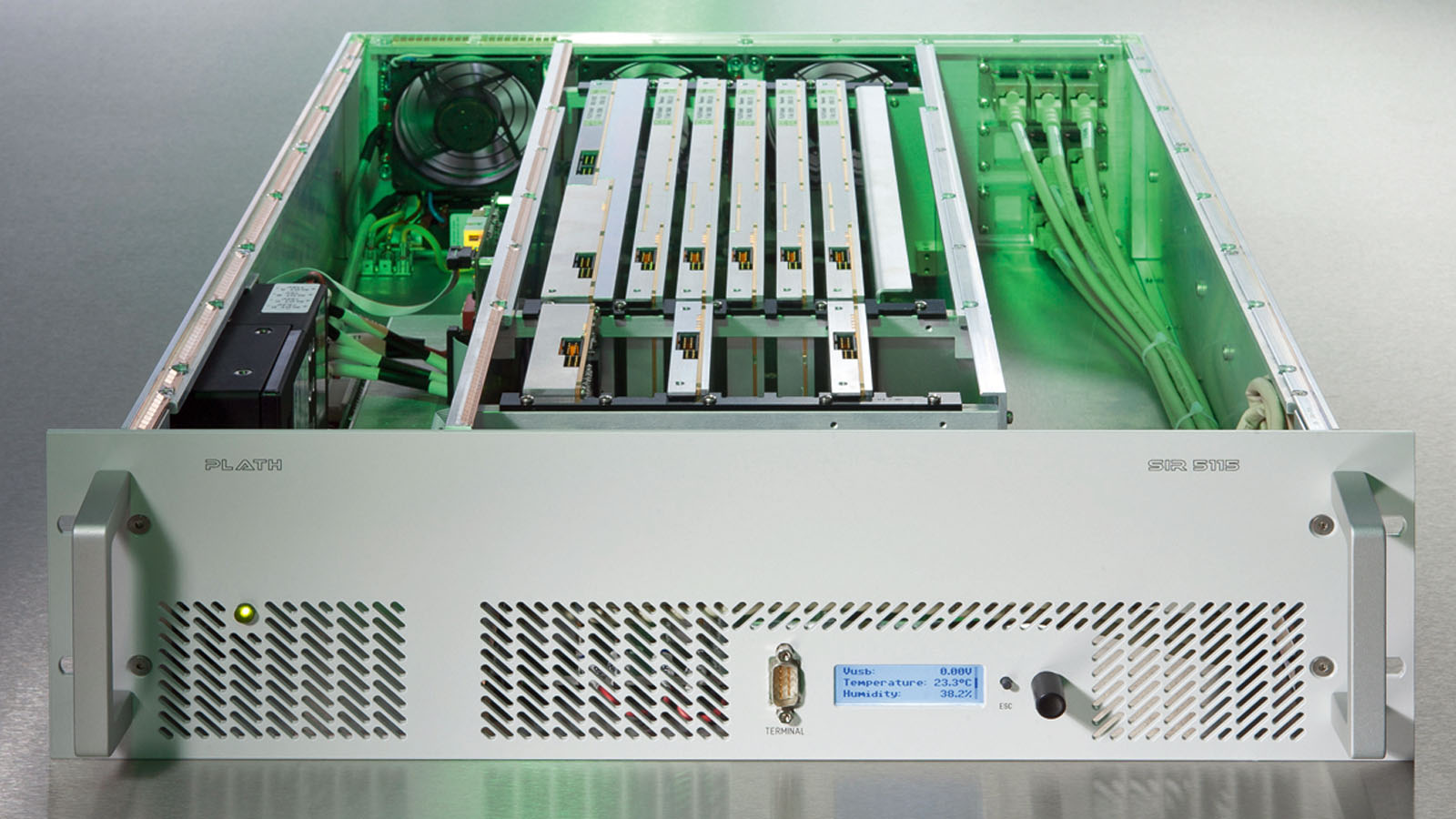

The SIR 5115 is a digital wideband monitoring receiver covering 0.5 to 30 MHz using direct sampling. The receiver provides a coherent bandwidth of 29.5 MHz. With exceptional technical specifications, the SIR 5115 allows simultaneously interception of entire bands at the same time - thereby replacing multiple normal receivers. The SIR 5115 is the answer to the ever-growing need for fully automated HF COMINT systems.
Technical Data
| Feature | SIR 5110 | SIR5115 (Difference) |
|---|---|---|
| Frequency range | 0.5 - 30 MHz | |
| Tuning resolution (DDC) | < 1 Hz | |
| Coherent wideband IQ output | 12.288 MHz, in 16 x 768 kHz subbands | 5 receivers combined in one device 29.5 MHz, in 40 x 768 kHz subbands |
| DDC channels | Basic version: 4 x 20 kHz bandwidth Optional: up to 120 narrowband channels |
Basic version: 120 x 20 kHz bandwidth Optional: 600 x 20 kHz bandwidth |
| Preselection | 7 high- and low pass filters | |
| Gain control | Automatic manual or automatic with user defined shift (AGC + M) |
|
| Maximum input level | + 30 dBm (non-destructive) | |
| Noise figure | < = 12 dB (without preselection) | |
| MDS (Minimum Detectable Signal) | -139 dBm (at 125 Hz resolution, 500 ms integration) | |
| SFDR (Spurious-Free Dynamic Range) | typ. 105 dB > 100 dB (2 - 30 MHz, in-band) > 95 dB (0.5 - 2 MHz, in-band) |
>= 125 dB |
| Input IP2 | > = 80 dBm (at 0 dBm and with AGC), presel.: off | |
| Input IP3 | > = 43 dBm (at 0 dBm and with AGC) | |
| BDR (Blocking Free Dynamic Range) | 140 dB/Hz | |
| Full dynamic range | 169 dB | |
| IF rejection | > 140 dB | |
| Image rejection | > 90 dB | |
| Internal spurious | None | |
| Frequency stability | +/- 10E-7 | |
| Frequency drift | < +/- 5* 10E-7 ageing / year | |
| Phase noise | < -150 dBc / Hz at 10 kHz offset | |
| VSWR | < 2 : 1 | |
| Antenna input, 50 Ohm | 1 x N-connector female | 5 x N-connector female |
| Input for external reference frequency | BNC-female (10 MHz) | |
| Input for time synchronization | BNC: pulse per second (PPS) | |
| Network interface | 2 x Gigabit Ethernet (for control and data) | 7 x Gigabit Ethernet (for control and data) |
| Service connection | RS-232 | |
| Operating voltage | 90 - 264 VAC (50 / 60 Hz) | |
| Maximum power consumption | 150 VA | 400 VA |
| Built In Test Equipment (BITE) | For every internal module, via SNMP interface | |
| MTBF (according to MIL-HDBK) | At least 10,000 hours | |
| Operating temperature | 0 grd C to +50 grd C | |
| Storage temperature | -40 grd C to +70 grd C | |
| Humidity | < = 85 % (non-condensing) | |
| Environmental standards maintained | EN61010-1:2002, EN61000-6-2:2002, EN61000-6-3:2002 | |
| Width | 19 inch (482.6 mm) | |
| Height | 1 RU (44.5 mm) | 3 RU (133.5 mm) |
| Depth | 490 mm | 605 mm |
| Weight | 7 kg | 25 kg |
PLATH SIR 511x
With exceptional technical specifications, the SIR 511X allows simultaneously interception of entire bands at the same time - thereby replacing multiple normal receivers. The answer to the ever-growing need for fully automated HF COMINT systems.
