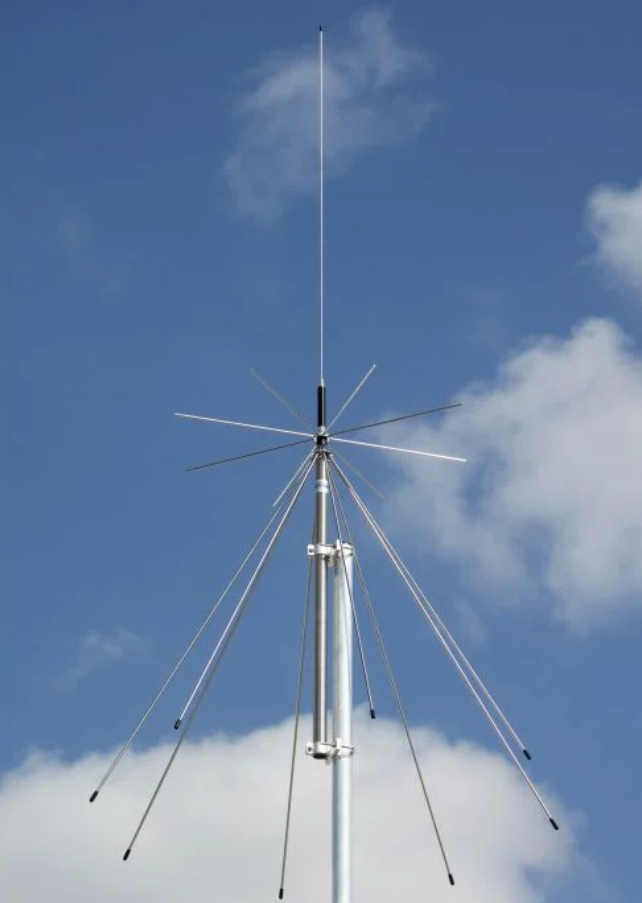

DIAMOND D3000N VHF/UHF Antenna

Wideband Discone
The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
- Ultra-wideband design 25 to 3000 MHz receive
- Compact and lightweight design enables antenna to be installed on light masts, balcony railing
- Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm bands
- Omnidirectional
- Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
- Ultra-wideband design 25 to 3 GHz
- Compact and lightweight design
- N-Connector
- Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
Technical data
Feature | Data |
---|---|
Frequency range | 25-3000 MHz |
Gain | 2 dB (nominal) |
Height | 1.7 m |
Max. diameter | 0.41 m |
Weight | 1 kg |
Connector | Type-N |
