SDRplay RSPdx/Duo HF/VHF/UHF
SDRplay produces a range of inexpensive HF/VHF/UHF SDRs. The big advantage is that HF/VHF/UHF is all integrated in one device.
This ensures fast switching between HF and VHF/UHF. Another nice feature is the built-in antenna switch.
The receivers can be used with go2MONITOR, SDR-Console or SDRuno/SDRconnect.
Key Facts
- go2signals support
- Enhanced ability to cope with extremely strong signals
- Choice of 3 antenna ports
- External clock input for synchronization purposes (GPS)
- Rugged black painted steel case
- USB interface

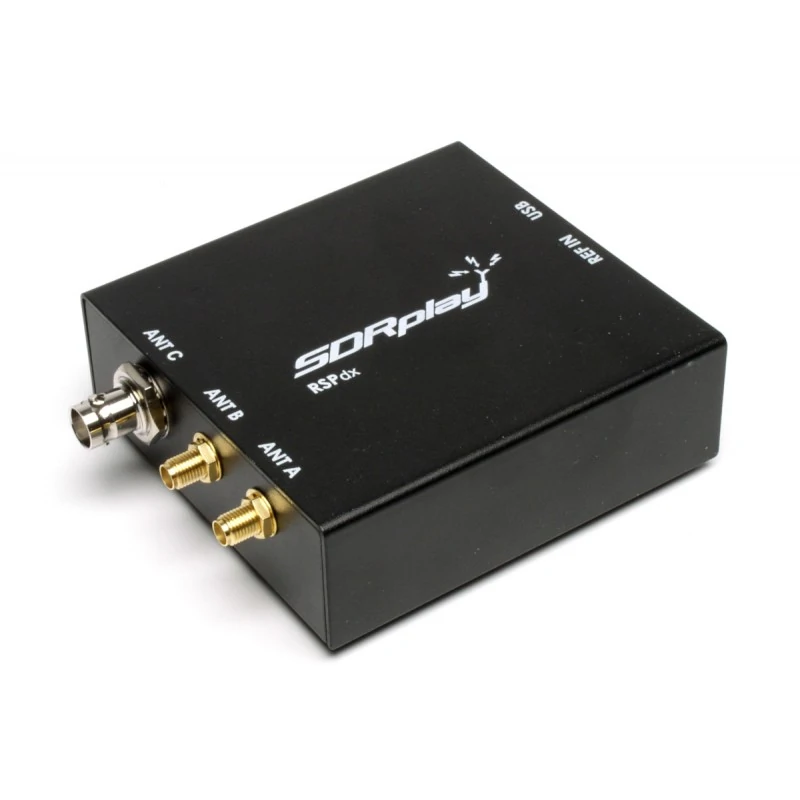

SDRplay RSPdx

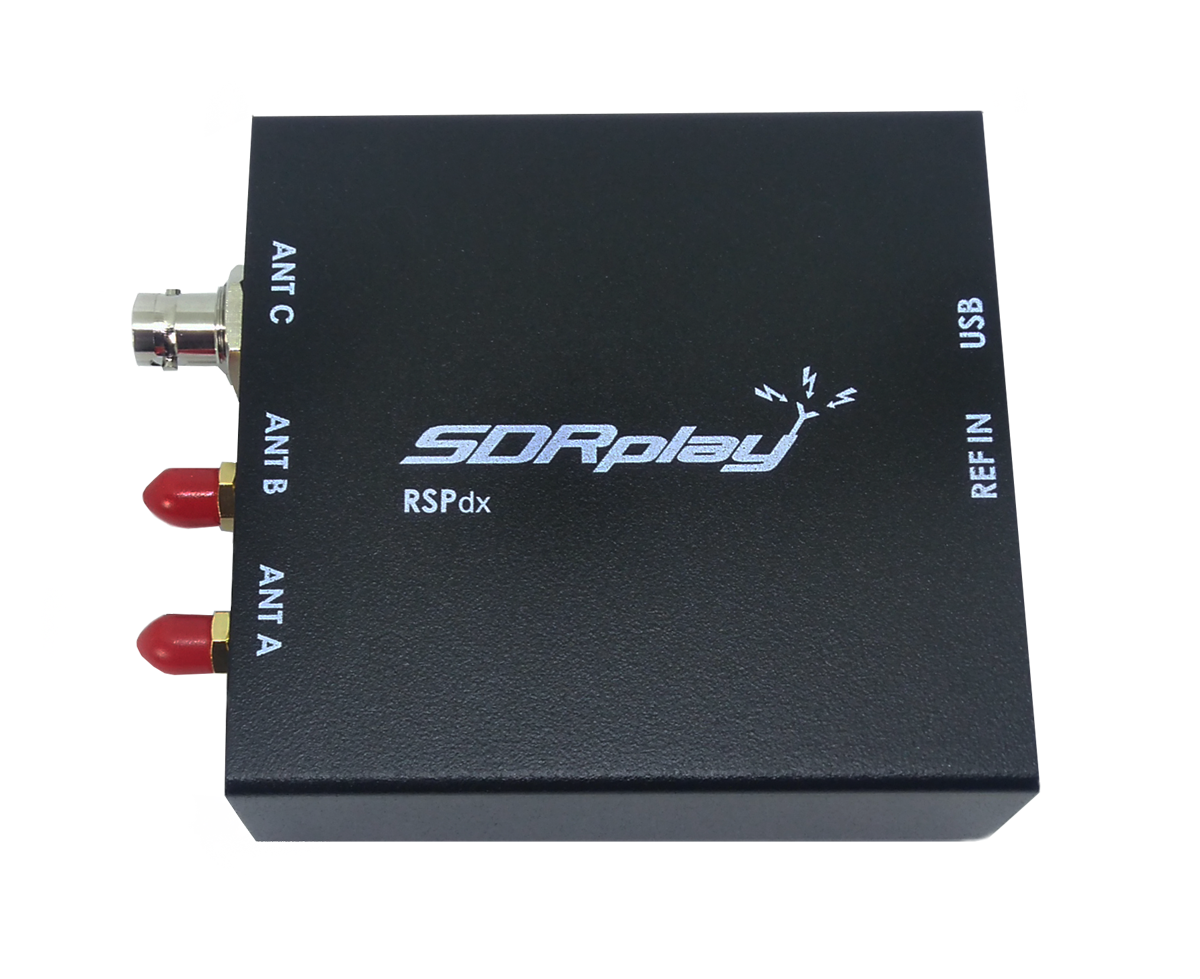

The SDRplay RSPdx is a single-tuner wideband full featured 14-bit SDR which covers the entire RF spectrum from 1kHz to 2GHz giving up to 10MHz of spectrum visibility. It contains three antenna ports, two of which use SMA connectors and operate across the full 1 kHz to 2 GHz range and the third uses a BNC connector which operates up to 200MHz.

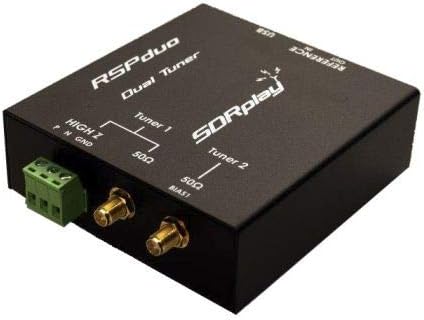

SDRplay RSPduo
The RSPduo is unique with its dual tuner and diversity tuning function.
Technical Data
Feature | Value |
---|---|
RSPdx & RSPuno | |
Coverage | 1 kHz - 2 GHz |
Bandwidth | 200kHz 300kHz 600kHz 1.536MHz 5.0MHz 6.0MHz 7.0 MHz 8.0 MHz |
A/D | 14 bit native ADC (2 – 6.048MSPS) 12-bit (6.048- 8.064 MSPS) 10-bit (8.064- 9.216MSPS) 8-bit (> 9.216 MSPS ) |
Front End Filtering | Low Pass < 2MHz Band Pass: 2-12MHz 12-30MHz 30-60MHz 60-120MHz 120-250MHz 250-300MHz 300-380MHz 380-420MHz 420-1000MHz High Pass > 1000MHz |
FM Notch Filters | >30dB 77 – 115MHz >50dB 85 – 107MHz >3dB 144 – 148MHz |
MW Notch Filters | >15dB 400 – 1650kHz >30dB 500 – 1530kHz >40dB 540 – 1490kHz |
DAB Notch Filters | >20dB 155 – 235MHz >30dB 160 – 230MH |
Maximum RF Input | 0dBm continuous 10dBm for short periods |
Clock | High temp stability 0.5PPM TCXO In-field trimmable to 0.01ppm |
Bias T | Software selectable 4.7V @ 100mA Tuner one Port only |
Interface | USB 2.0 (high speed) type B socke |
External Reference Clock | Plug in the external clock before power-up Auto-detect will switch to the external reference. - Frequency 24MHz sine/square wave - 1V Pk-Pk Min - 3.3V Pk-Pk Max |
Power | USB |
Weight | 0.31 kg |
Compatibility | go2MONITOR; ExtIO SDR-Console SDRuno |
RSPdx | |
Number of RX | 1 |
Typical Noise Figures | 20dB @ 2MHz 17dB @ 12MHz 15dB @ 25MHz 15dB @ 40MHz 2.6dB @ 100MHz 2.1dB @ 200MHz 6.0dB @ 340MHz 3.1dB @ 660MHz 4.4dB @ 1500MHz 5.0dB @ 1800MHz |
Antenna Connectors | 2 x SMA (1 with Bias T) 1 x BNC |
Current consumption | 190mA @ >60MHz (excl bias T) 120mA @ <60MHz (excl bias T) |
Dimensions | 113 x94 x 35 mm |
RSPuno | |
Number of RX | 2 |
Typical Noise Figures | 18dB @ 2MHz 15dB @ 12MHz 15dB @ 25MHz 15dB @ 40MHz 3.3dB @ 100MHz 3.3dB @ 200MHz 5.8dB @ 340MHz 3.6dB @ 660MHz 4.3dB @ 1500MHz 5.0dB @ 1800MHz |
Antenna Connectors | Tuner 1 Antenna SMA - 1kHz – 2GHz operation - 50Ω input impedance Tuner 1 High-Z Port Characteristics - 1kHz – 30MHz operation - 1kΩ input impedance (balanced) Tuner 2 Antenna SMA - 1kHz – 2GHz operation - 50Ω input impedance - Selectable 4.7V DC out (see Bias T |
Current consumption | Single tuner:180 mA (excl Bias T) Both tuners: 280 mA (excl Bias T) |
Dimensions | 98 mm x 94 mm x 33 mm |
Operating Modes | Single receiver (Tuner 1) Single receiver (Tuner 2) Dual Tuner (Tuner 1or 2 as master) |
SDRplay
The SDRplay is supplied with a metal housing.
It is a good choice if HF and VHF/UHF are to be covered.
The antenna switch is also useful if several antennas are present.
