DIAMOND WD330 T2FD HF
The WD330 T2FD broadband dipole antenna is designed to provide optimum performance over a wide frequency range. The usual requirements for multiple antennas or an antenna tuner between antenna and receiver are eliminated by the unique broadband design.
The advantage of this antenna is the low noise floor, which is often better than a high signal strength.
Key Facts
- HF wideband, 2-30 MHz
- Low noise
- Passive
- No static interference
- No antenna tuner required

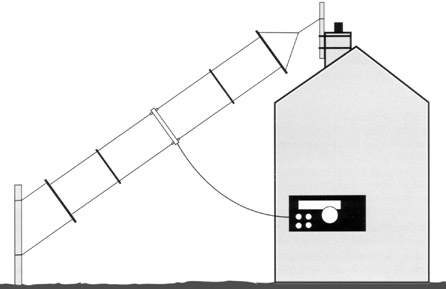

- Can be installed horizontally for maximum efficiency, but also as an inverted "V" and as a sloper.
Technical Data
| Feature | Data |
|---|---|
| Frequency range | 2 - 30 MHz |
| Gain | - |

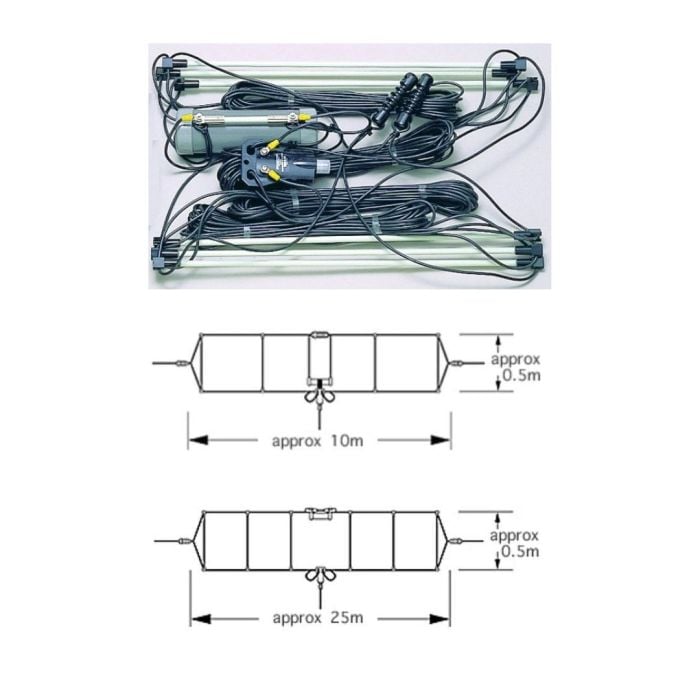

| Length | 25 m (WD330) 10 m (WD330S) |
| VSWR (Typical) | 2:1 from 2 - 18 MHz 3:1 above 18 MHz |
| Impedance | 50 Ohm |
| Weight | 3.5 kg (WD330) 1.7 kg (WD330S) |
| Connector | PL-259 |
DIAMOND WD3330
- One of the best passive broadband antennas for COMINT.
- Passive
- good Signal-to-Noise
- Wideband
