go2signal-analyzer offers manual and automated modulation off-line analysis in a user-friendly way. It provides analysts and operators with a quick display of all modulation-specific information on a few predefined screens. The user does not have to work step by step through the various analysis functions and set up the mathematical operators to analyze the signal.

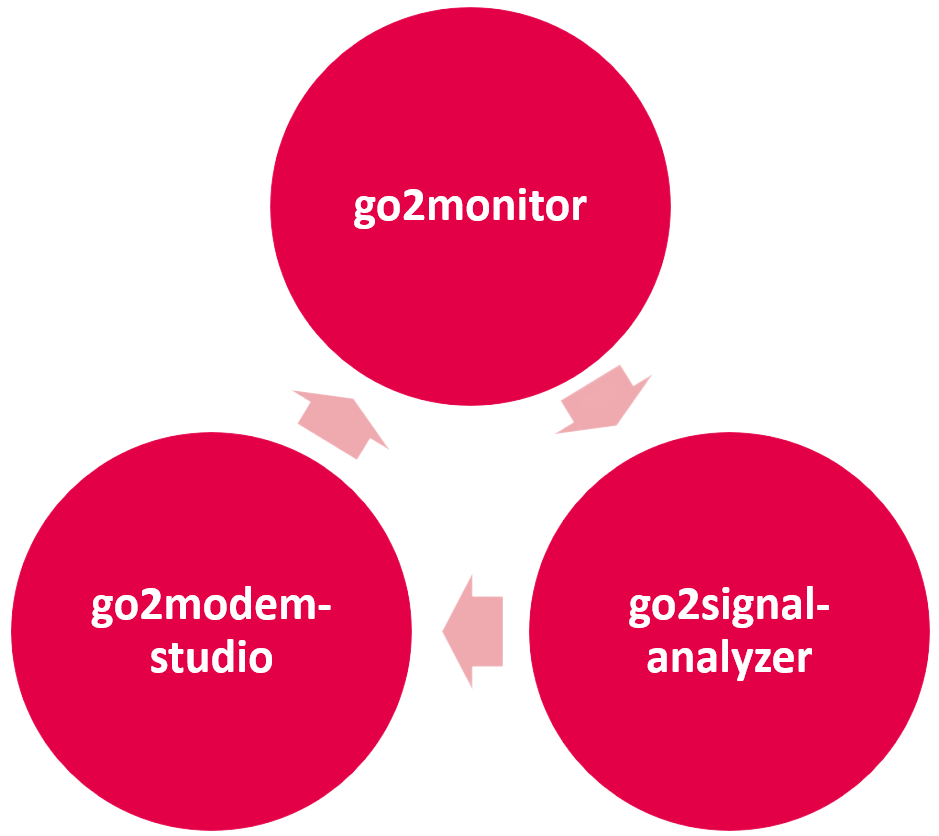

The result of the signal analysis can be used to identify/document signals or to set up new demodulators and decoders (with go2modem-studio) for go2monitor.
go2signal-analyzer is used when signals are found that cannot be decoded. With go2signal-analyzer, recordings can be examined offline, and if the demodulator settings are known, the corresponding decoders can also be created with go2modem-studio.
go2signal-analyzer allows the user to analyze unknown modulations easier and faster. This helps to identify signals and speeds up the creation of decoders/detectors for go2monitor.
The application is intended for manual analysis of recorded signals. It is designed as a toolbox that contains the necessary signal processing and visualization functions for the study of emissions. The results are visualized in plot displays that allow observing certain signal properties and determining some modulation parameters.
The product also comes with an expandable signal database.
To use this application and interpret its results, knowledge and technical background of signal processing and modulation techniques are required.
Even a non-specialist user can analyze a recorded signal in just a few steps.
Localization of disturbances due to propagation conditions (fading, noise, etc.)
Detection of deviating parameters in modulation
Detection of deviations in the bit stream
Since decoding is possible down to the bit level, different settings can be tried out to find the best ones.
