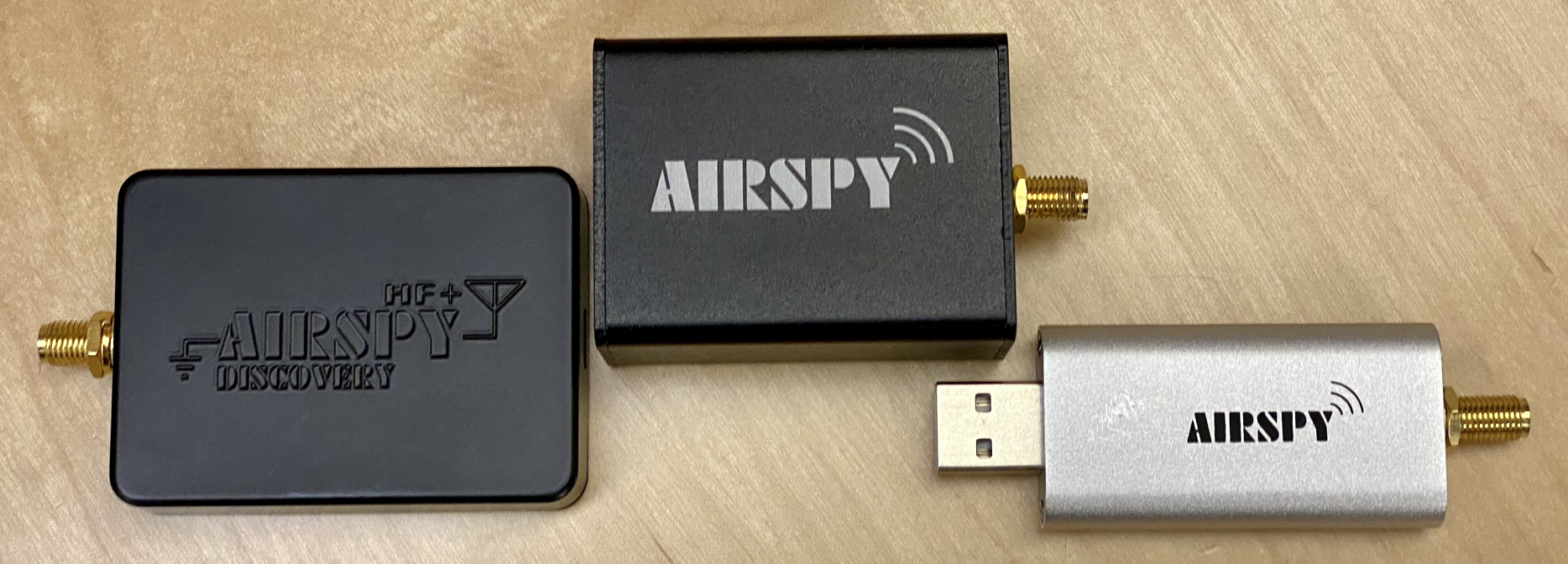

AirSpy HF+ / R2/ Mini HF/VHF/UHF
Airspy is a line of popular Software-Defined Radio (SDR) receivers developed to achieve high performance and affordable price. The goal is to satisfy the most demanding telecommunications professionals and radio enthusiasts while being a serious alternative to both cost sensitive and higher end receivers. The receivers can bee used with go2MONITOR, SDR-Console or SDR#.
SDR# contains also SPY Server an application for remote SDR operation
Key Facts
- go2signals support
- Small, versatile
- No external power
- USB interface
- No IQ imbalance

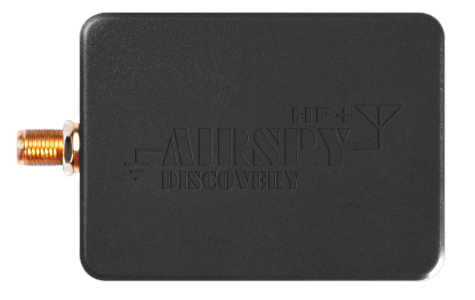

Airspy HF+ Discovery
A HF/VHF SDR with world class performance in the smallest form factor. The Airspy HF+ Discovery sets a new standard in terms of reception performance with extra pre-selectors for all the supported bands. With its world class strong signal handling capability and incredibly low noise, the HF+ Discovery is the ideal companion for all your high performance receive scenarios at a very affordable price.

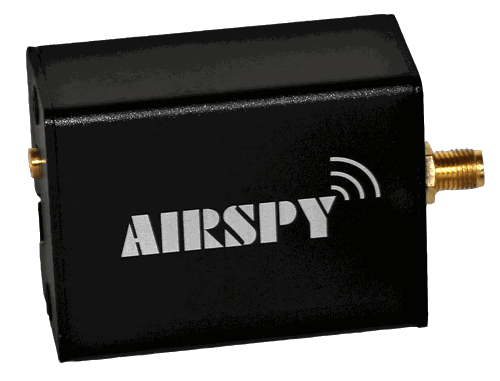

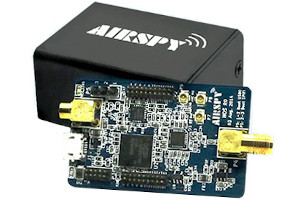

Airspy R2, VHF UHF RX
The Airspy R2 for VHF and UHF offers a low-IF architecture based on Rafael Micro R820T2 and a high quality oversampling 12bit A/D converter. In oversampling mode, the Airspy R2 applies analog RF and IF filtering to the signal path and increases the resolution to up to 16-bit using software decimation.

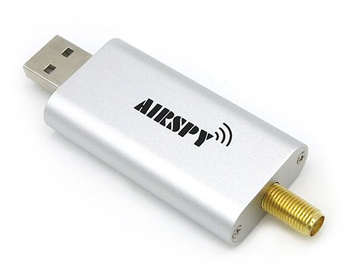

Airspy Mini, VHF UHF RX
Very similar to the Airspy R2, but in an even smaller form factor.
Technical Data
| Feature | Data |
|---|---|
| Airspy HF+ Discovery | |
| HF | 0.5 kHz - 31 MHz |
| VHF | 60 - 260 MHz |
| Bandwidth | Up to 660 kHz alias and image free |
| Sensitivity HF | -140 dBm (0.02 µV / 50 ohms at 15MHz) MDS Typ. @ 500Hz BW |
| Sensitivity VUHF | -141 dBm MDS Typ. @ 500 Hz bw |
| Linearity HF | +15 dBm IIP3 |
| Linearity VUHF | +13 dBm IIP3 |
| Dynamic Range HF | 110 dB blocking dynamic range (BDR) |
| Dynamic Range VUHF | 95 dB blocking dynamic range (BDR) |
| Selectivity | 150+ dB combined (hw + sw) |
| Image Rejection | 120 dB (sw) |
| Phase noise | -110 dBc/Hz @ 1kHz separation; 100 MHz |
| IQ Data | 768 kSPS |
| Dimensions | 45 x 60 x 10 mm |
| Airspy R2 | |
| Frequency Range | 24 - 1700 MHz |
| Bandwidth | 9MHz alias/image free |
| IQ Data | 10 MSPS 2.5MSPS |
| Dimensions | 40 x 53 x 25 mm |
| Additional | 16 x SGPIO 4.5v Bias-Tee 1 RTC clock |
| Airspy Mini | |
| Frequency Range | 24 - 1700 MHz |
| Bandwidth | 6 MHz alias/image free |
| Linearity VUHF | 35dBm IIP3 RF |
| IQ Data | 10 MSPS 6 MSPS 3 MSPS |
| Dimensions | 27 x 52 x 11 mm |
| Additional | 4.5v Bias-Tee |
| Common specifications | |
| Maximum RF Input | +10 dBm |
| Clock | 0.5 ppm |
| Interface | USB 2.0 |
| Antenna Connectors | SMA |
| Operating Temperature | -10°C - 45°C |
| Power | USB |
| Compatibility | go2MONITOR; ExtIO SDR-Console SDR# |
AirSpy
Airspy Radios feature world class reception quality and ease of use thanks to the tight integration with the de facto standard free SDR# software for signal acquisition, analysis, navigation and demodulation.
