The X-One must be partially assembled on site, for this purpose the dipole elements with the end capacities must be attached to the housing.

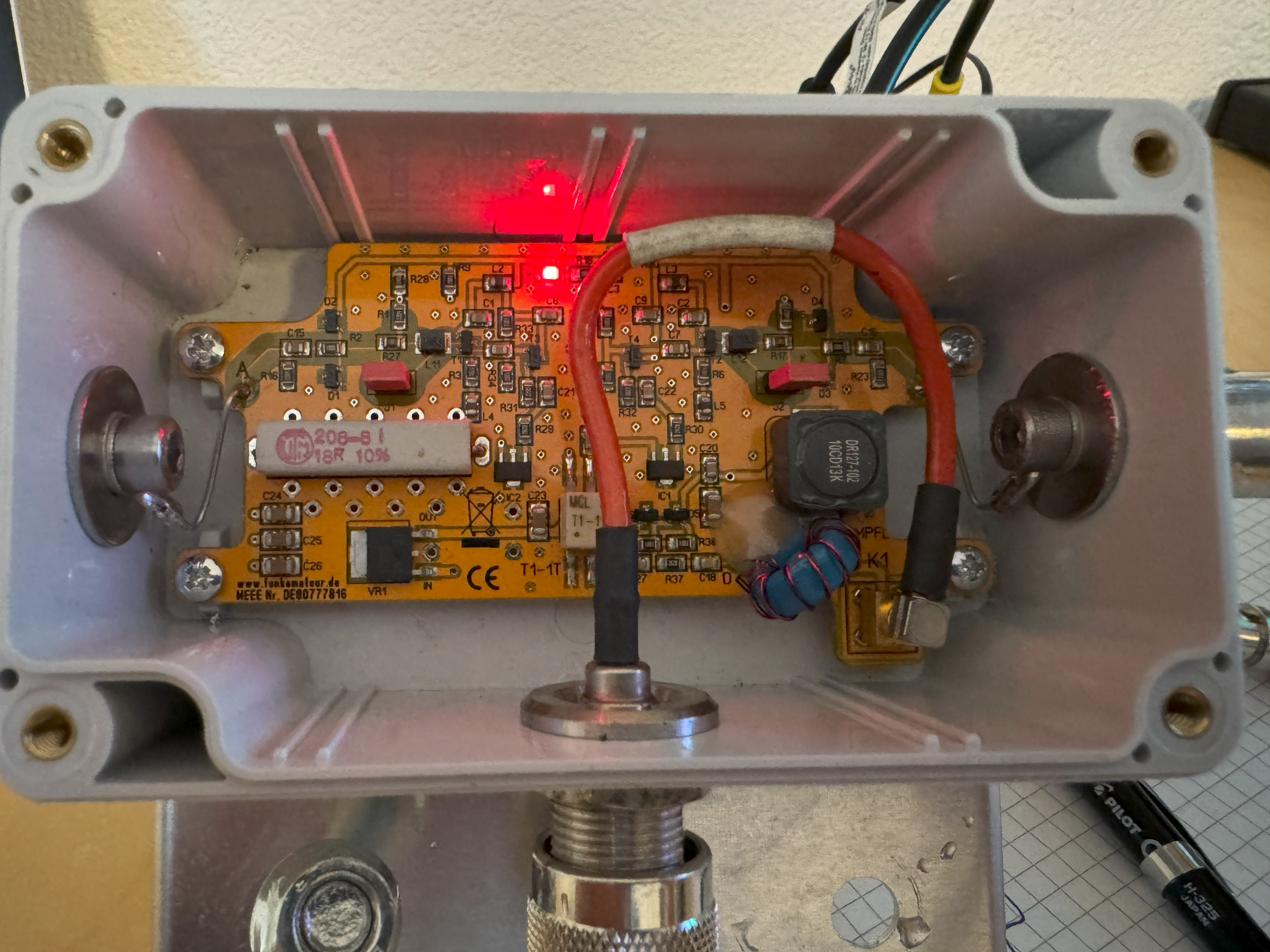

Depending on the local situation, signal blocking can be activated for the FM range 88-108 MHz.

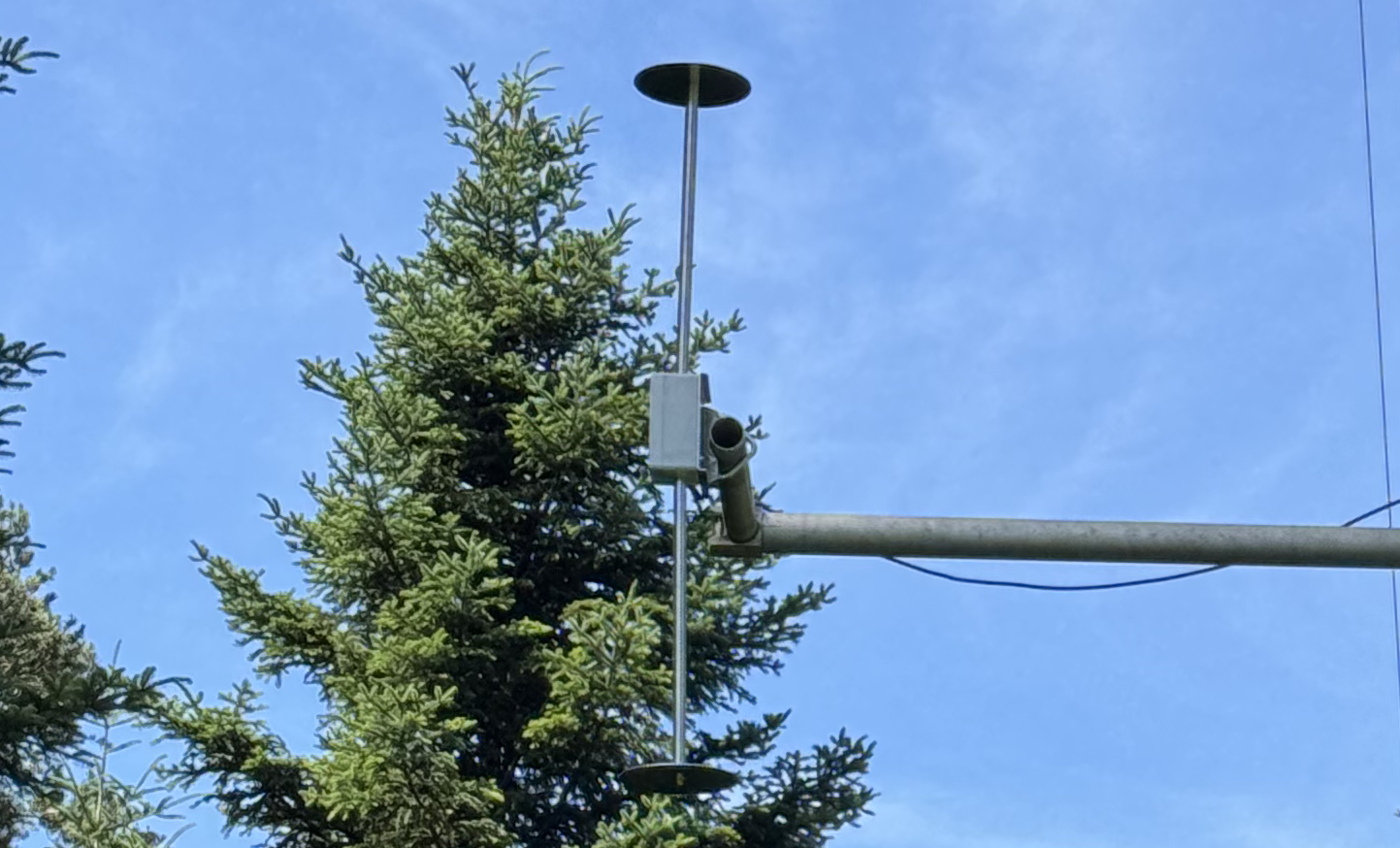

The installation site should be a quiet HF location. The X One is mounted on a 40-60 mm mast (metal, fiberglass). A height of approx. 5 m and a distance of 4 m to the objects is recommended.
With horizontal orientation, a rotor can bring further improvements. Omnidirectional reception is possible with vertical orientation.
As the X-One is a symmetrical antenna, reception is independent of the ground.
The antenna is already equipped with a CMC, which reduces common mode interference.

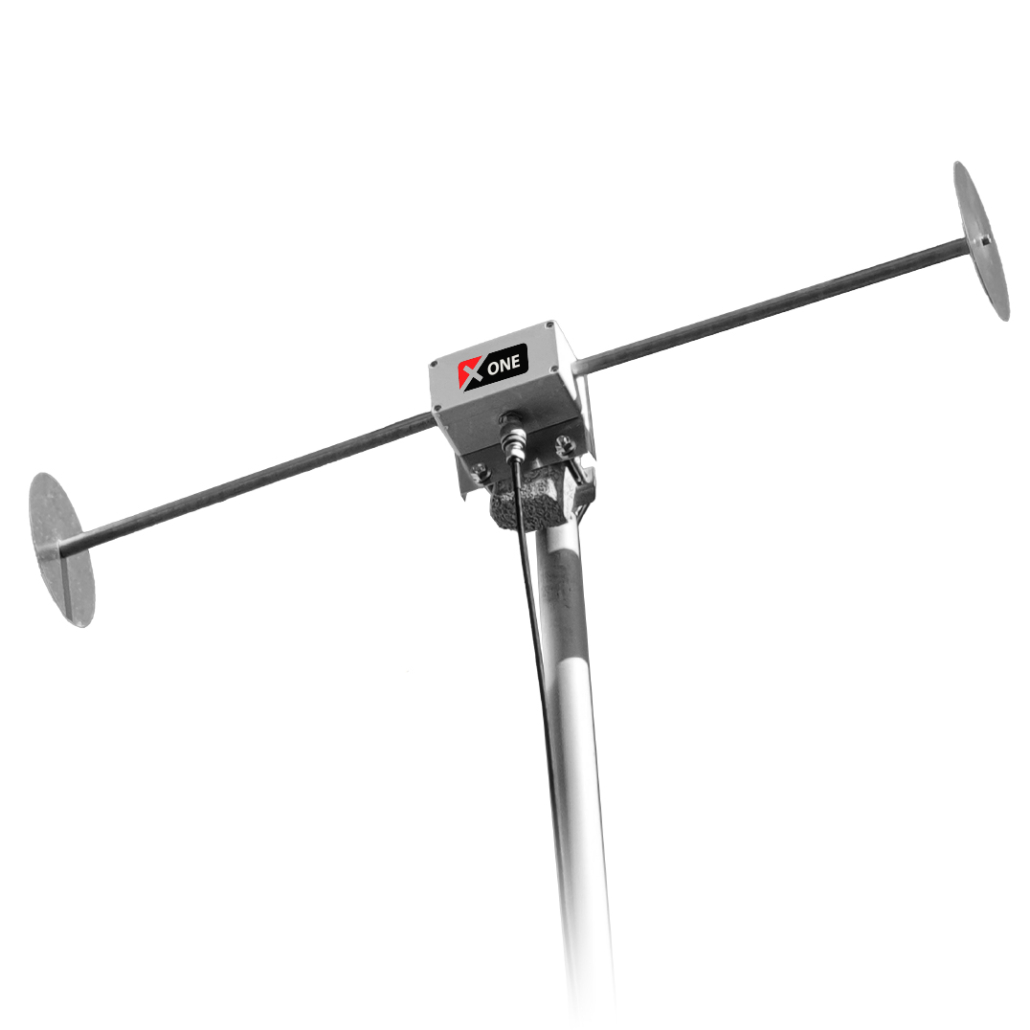

STAMPFL X One Active Dipol Antenna
Founded in 2005 by Heinz Stampfl (HB9KOC), STAMPFL HAM Electronics specializes in kits, Morse keys, and compact electronic components for radio enthusiasts. The company is known for its high‑quality products, thorough documentation, and excellent customer support
Key Facts
- 10 kHz to 150 MHz
- Selectable FM band stop
- Excellent reception performance
- Excellent common mode rejection
- Small and mechanically robust solution
- Horizontal or vertical setup
- Perfect for mobile use

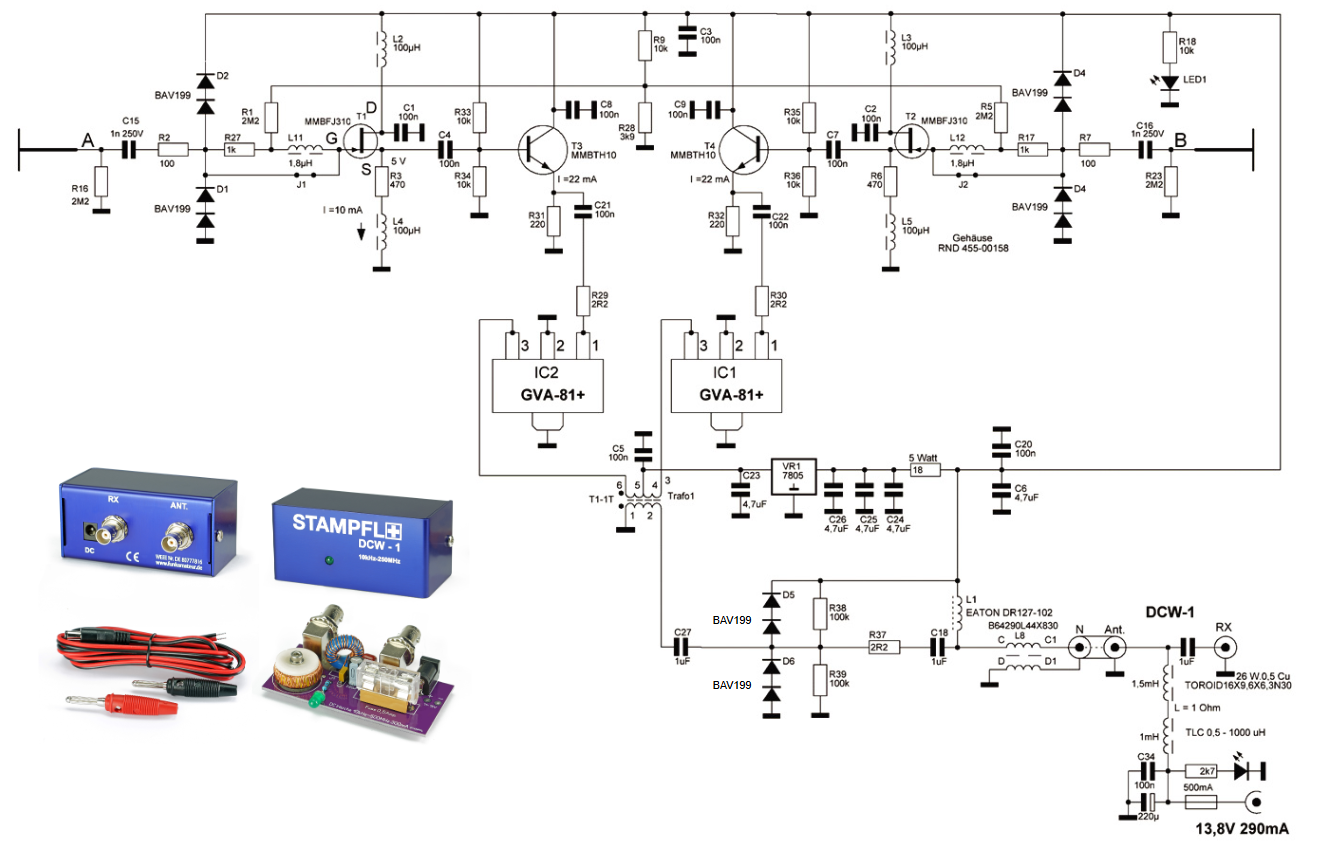

- Professional quality, incl. schematic
Overview
X One Active Dipol
Technical Data
| Feature | X ONE |
|---|---|
| Frequency range | 90 kHz - 150 MHz (usable from 10 kHz) |
| FM Band Stop | Internal Jumpers |
| Antenna Size | 800 mm |
| IP3, Typ | > +28 dBm |
| IP2, Typ | > +66 dBm |
| Impedance | 50 Ohm |
| Pole mount | 40 - 60 mm |
| Common mode rejection | typ. -30 dB (0.2-60 MHz) |
| Weight | 0.9 kg |
| Power Supply | 12-14 V, 270 mA |
| Connector | N, Antenna Side BNC, Bias-Tee |
| Operating temperature range | 20 to +60 grd C |
