Adiscone antenna is an omnidirectional, wideband antenna that consists of a disc-shaped element mounted above a cone-shaped structure. These antennas are usually mounted vertically, with the disc positioned on top and the cone at the bottom. The disc serves as the radiating element, while the cone acts as the ground plane. This unique and versatile design offers a powerful blend of broadband coverage, omnidirectional reception, and compact design for radio monitoring, scanning, spectrum surveillance, and COMINT.

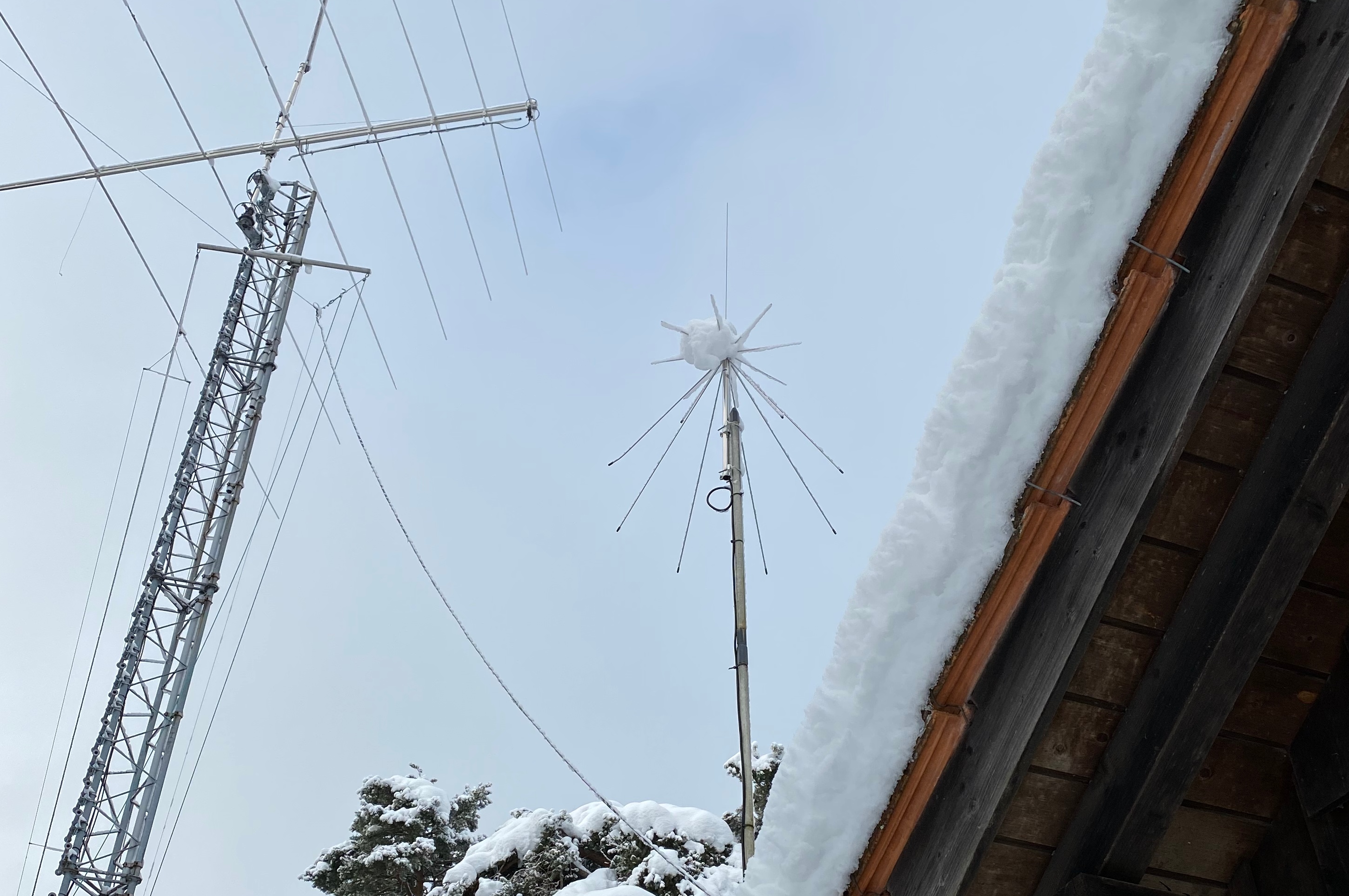

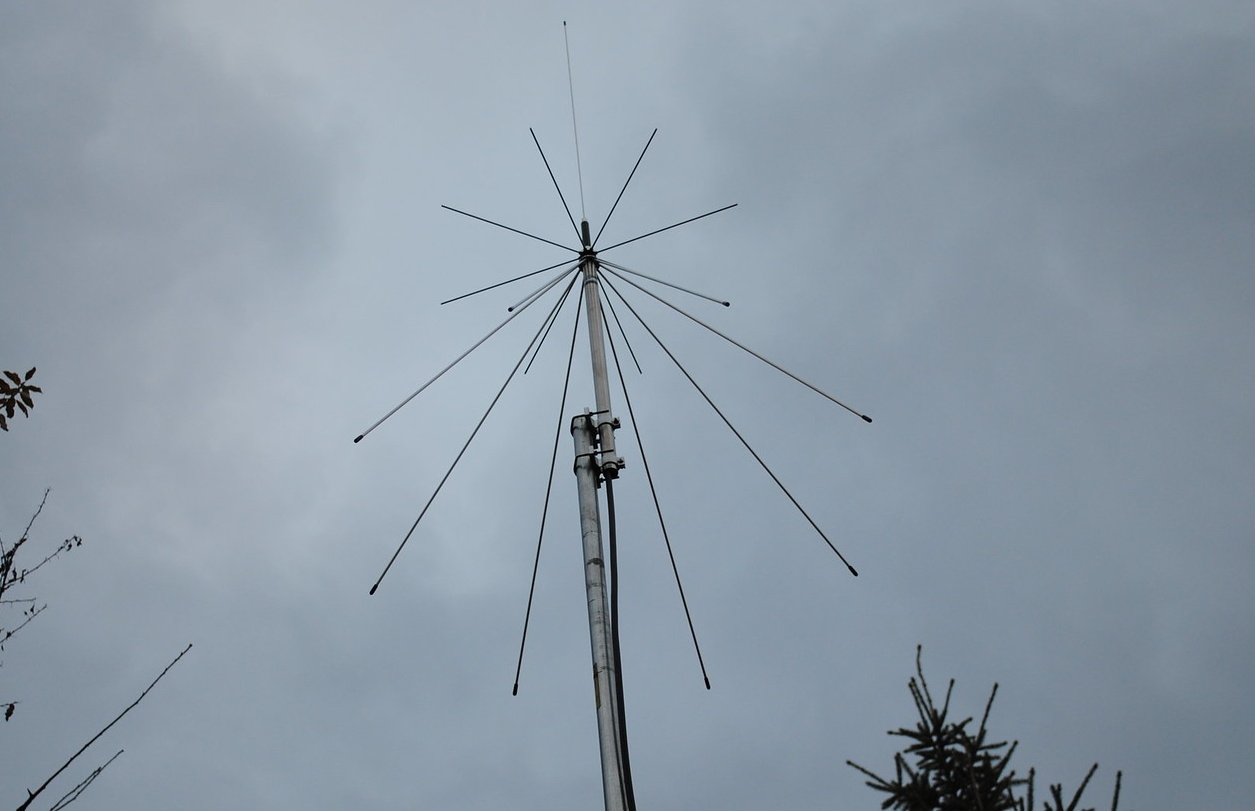

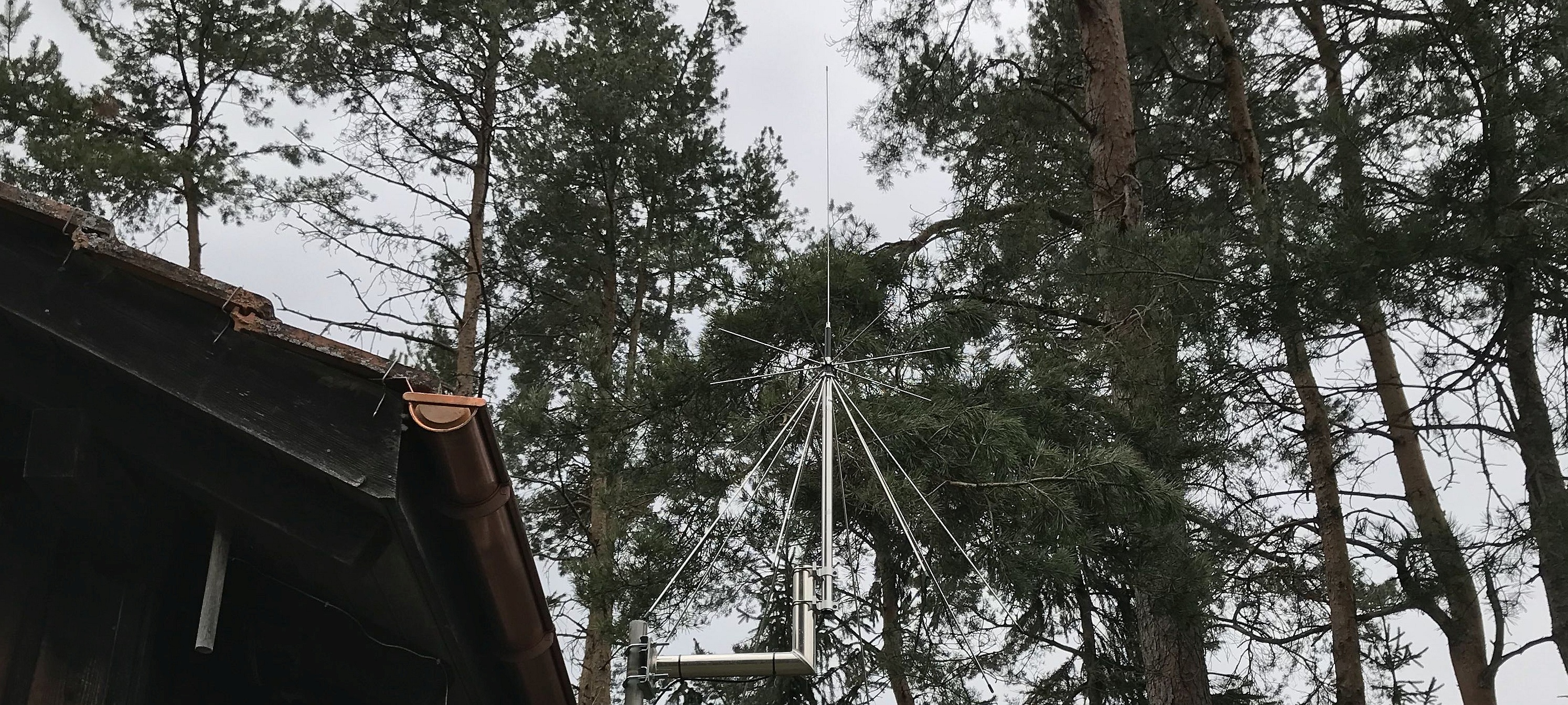

DIAMOND D3000N
The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Key Facts
- Ultra-wideband design 25 to 3000 MHz receive
- Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm bands
- Omnidirectional
- Vertical polarization
- Low VSWR over wide ranges
- Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required
- Compact and lightweight design
- N-Connector
Overview
DIAMOND D3000N VHF/UHF Discone
Technical Data
| Feature | Data |
|---|---|
| Frequency range | 25-3000 MHz |
| Gain | 2 dB (nominal) |
| Height | 1.7 m |
| Max. diameter | 0.41 m |
| Weight | 1 kg |
| Connector | Type-N |
