NARDA SignalShark HF/VHF/UHF
Receiver for detection, analysis, classification and localization of RF Signals between 8 kHz and 8 GHz. Applicable for mobile and stationary use.
Just like that highly efficient hunter in the ocean, SignalShark derives its success in measurement from the interplay of its highly developed seven senses or sensors.
Key Facts
- go2signals support
- World's smallest man-pack COMINT & Radio DF system! Wideband receiver for Detection, Analysis, Classification and Localization of RF Signals between 8 kHz and 8 GHz. Applicable for mobile and stationary use.
- Typical applications are COMINT Systems, satellite monitoring, broadband RF recorders or quality measurements in mobile communication networks
- Highest signal quality in the frequency range up to 6 GHz
- Up to 40MHz instantaneous bandwidth
- VITA 49
- Six independent digital down converters (DDC)
- Real-time spectrum calculation
- Large internal buffer memory
Like a Shark, that highly efficient hunter in the ocean, Narda SignalShark derives its success in measurement from the interplay of its highly developed senses.
Its 40 MHz real-time bandwidth captures the spectrum of even very short-pulsed signals > 3.125μs with a POI of 100 %. This guarantees a consistent awareness of all spectrum events.
Due to its distinguished analysis functions as real-time spectrum, spectrogram and persistence, measured signals are analyzed with a very high frequency and time resolution.
SignalShark is available in three different versions:

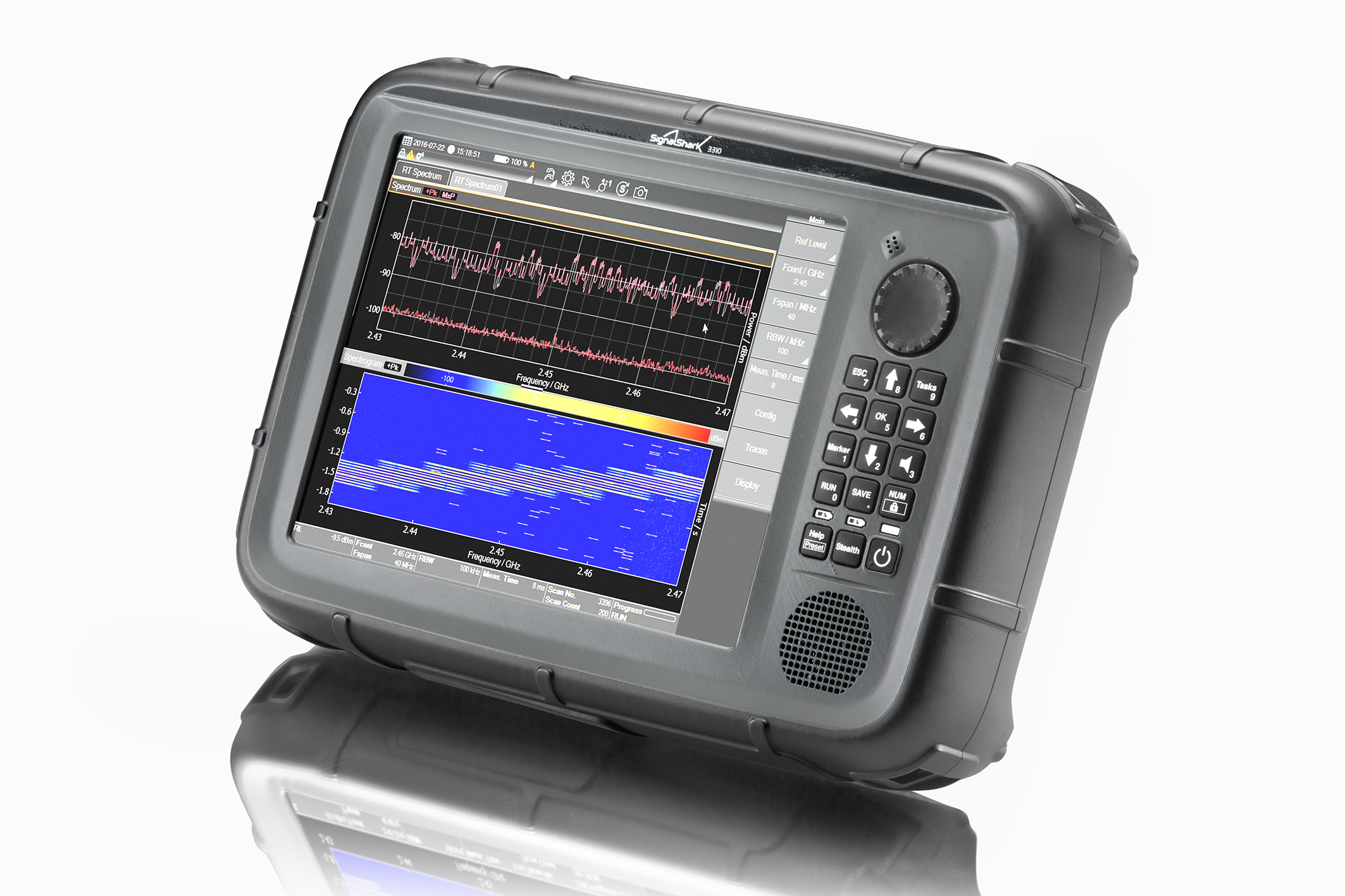

- Handheld

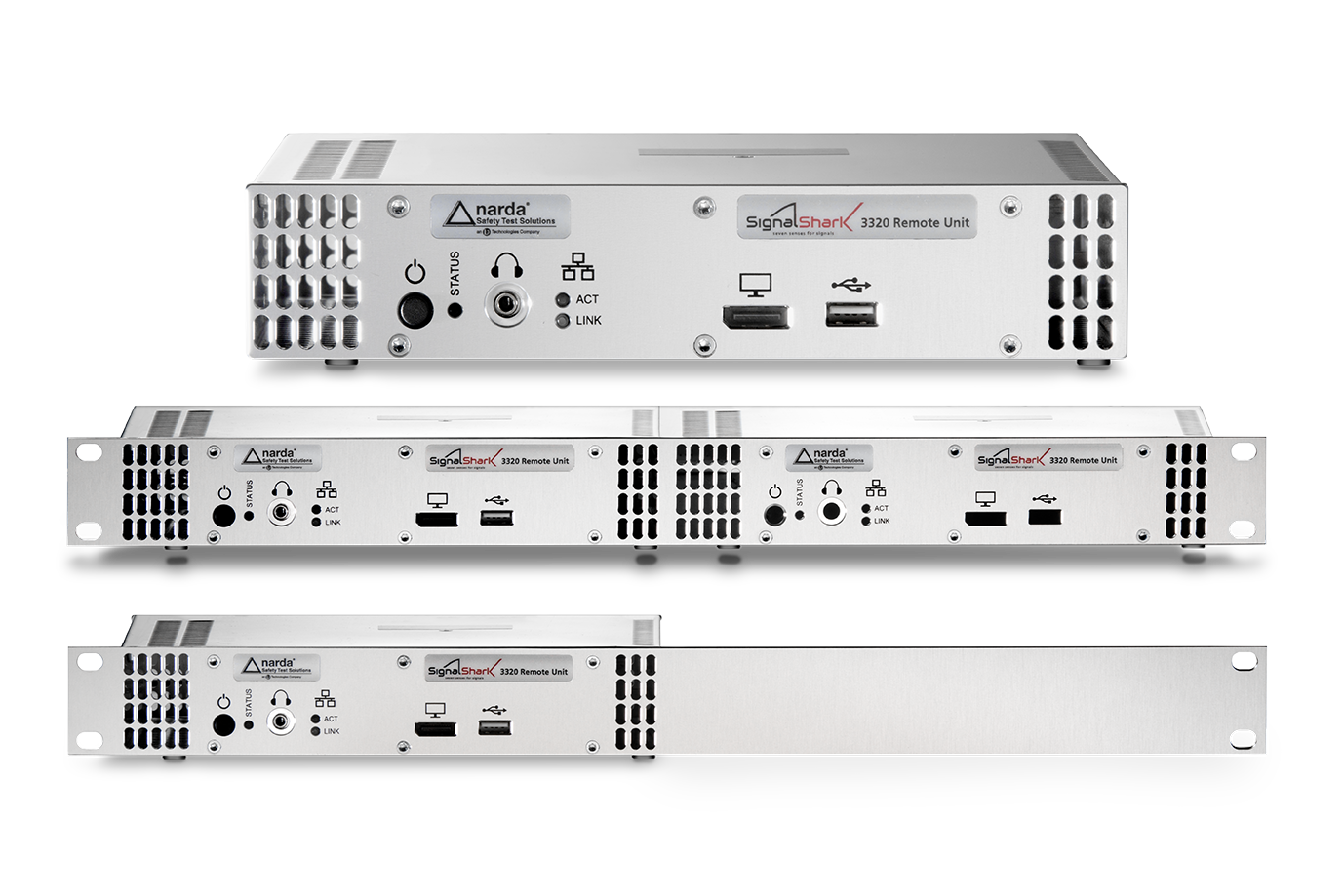

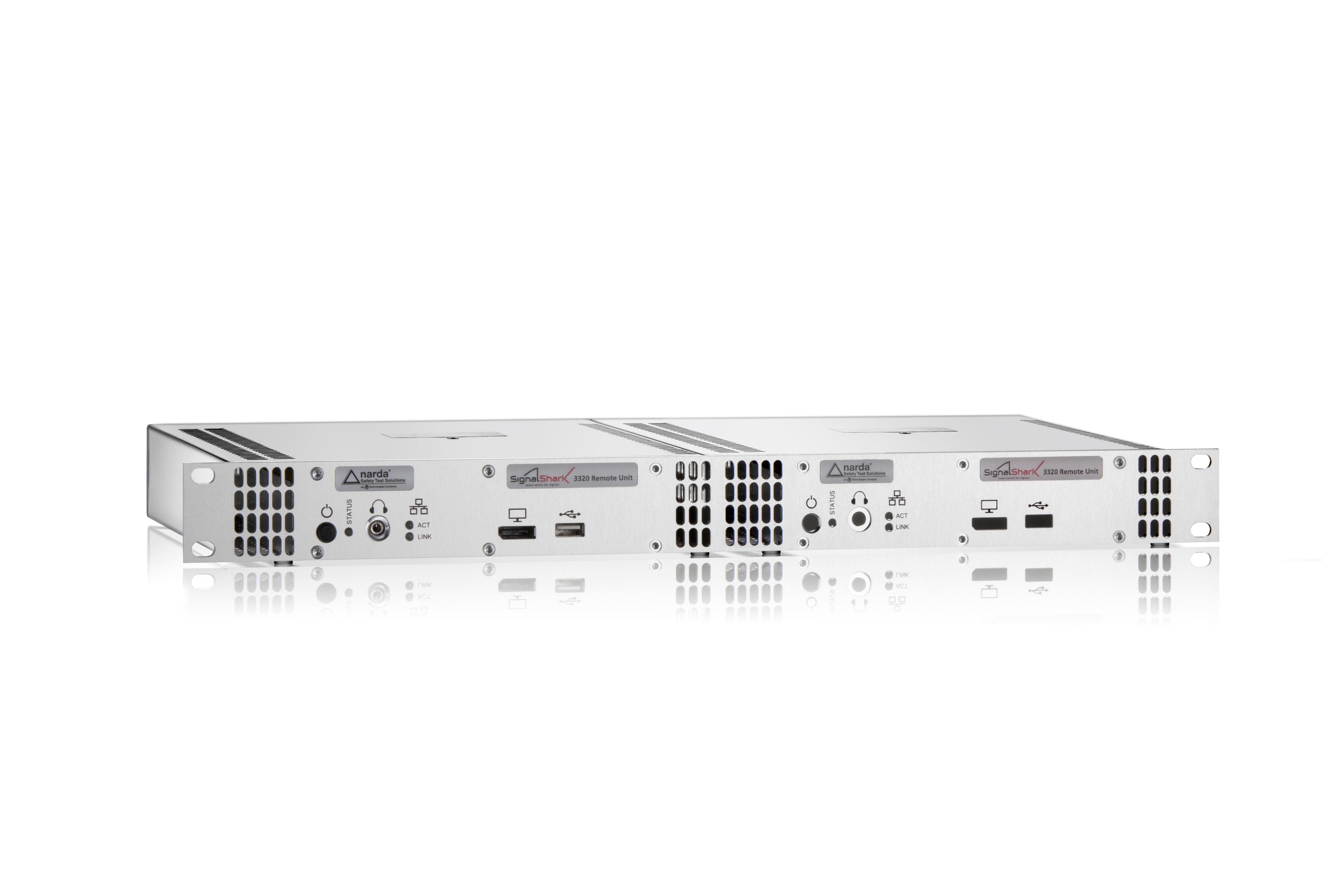

- Remote (19")

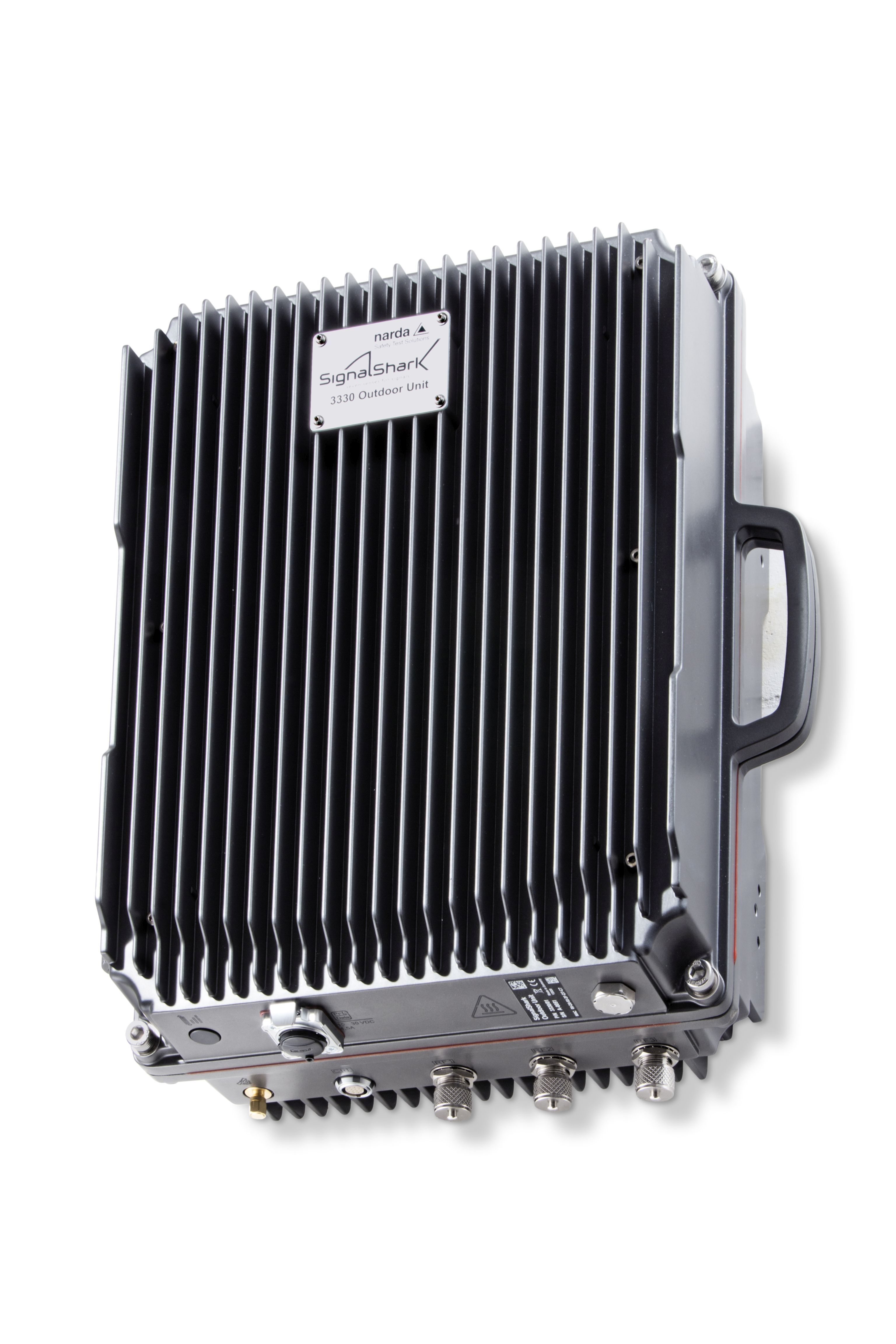

- Outdoors

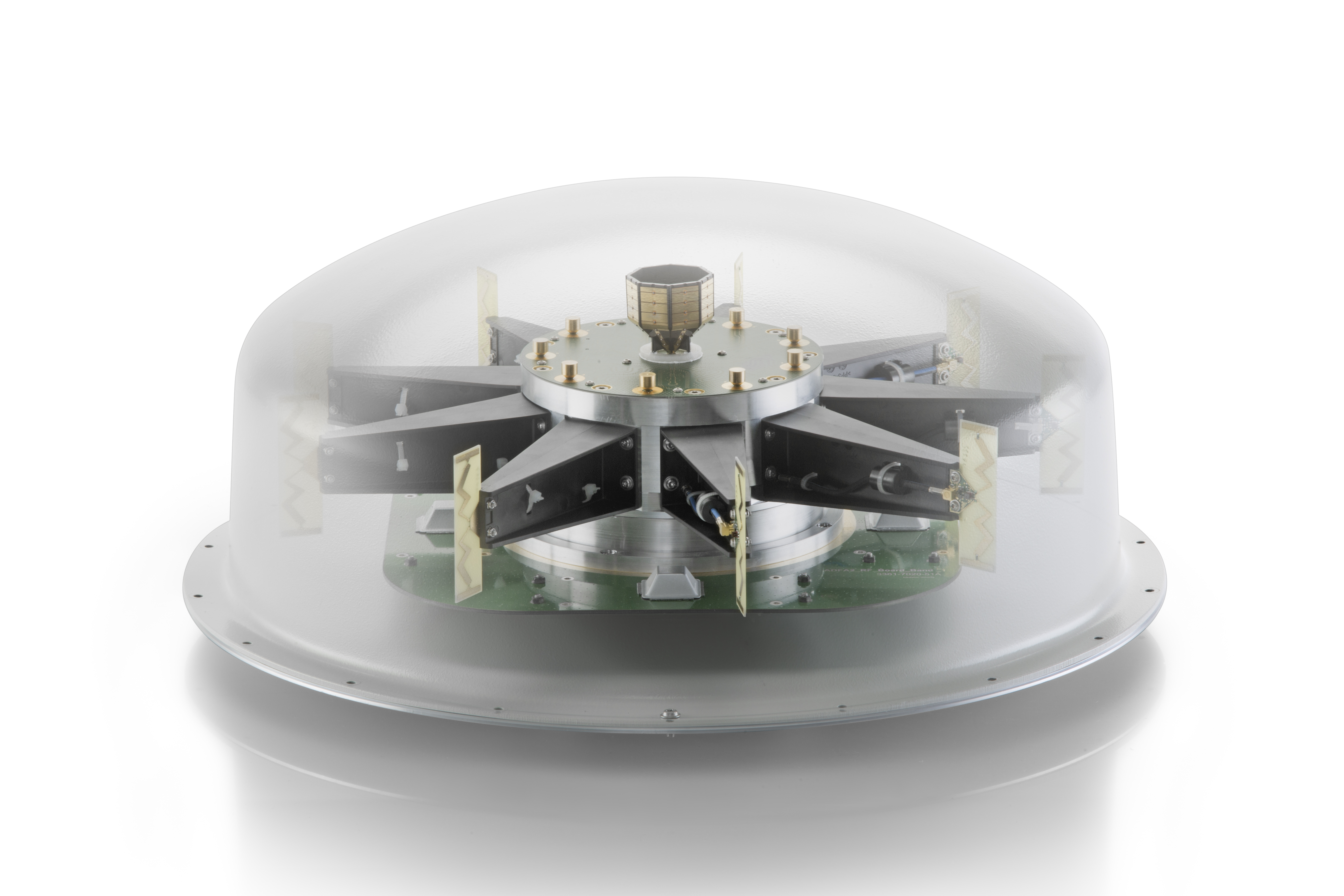

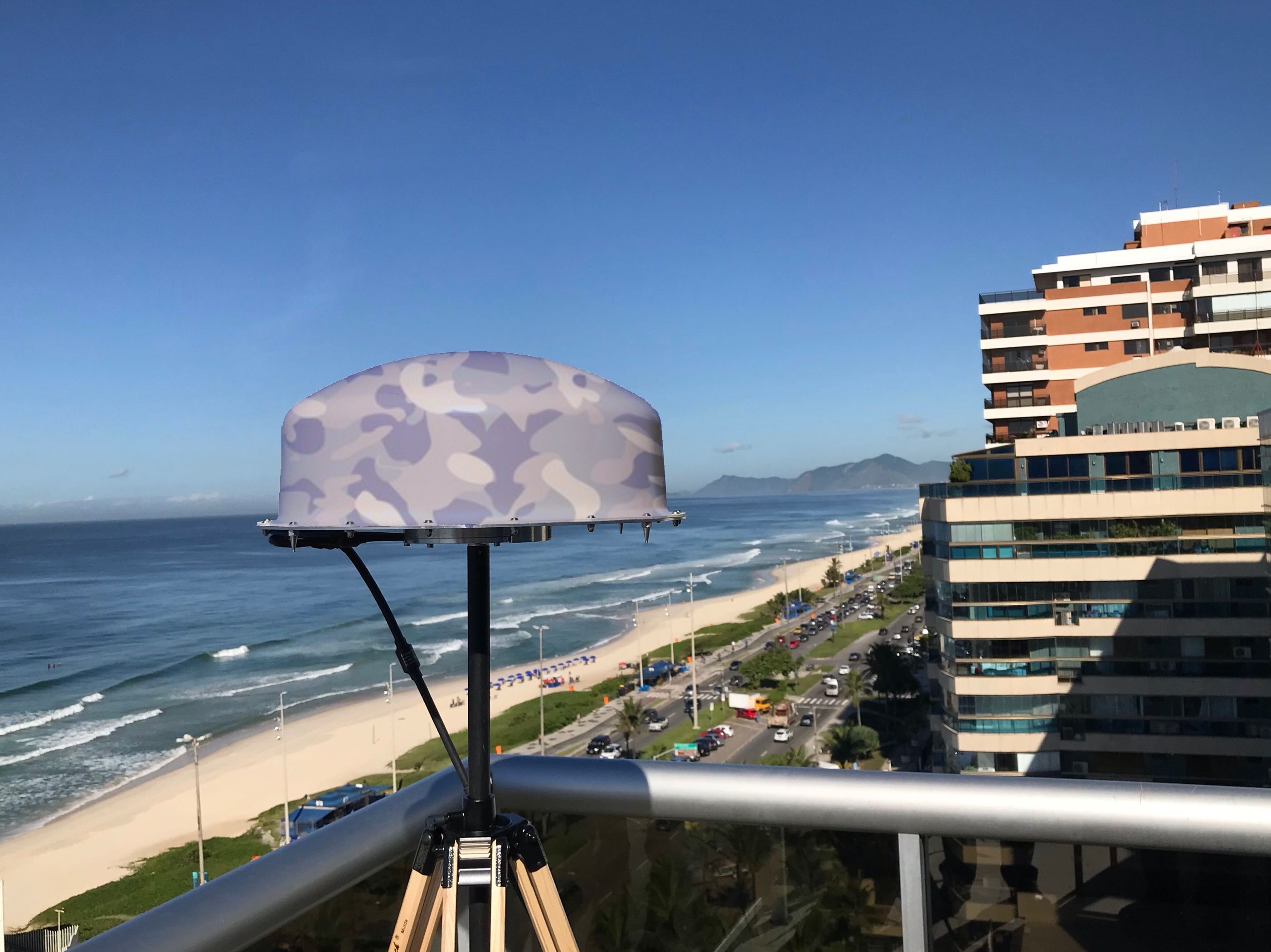

NARDA offers a wide range of accessories (direction finding antennas etc.)
Technical Data
| Feature | Handheld 3310/01 |
|---|---|
| Input | 8 kHz to 8 GHz 1 x N-connector, 50 ? (female) 3 x SMA-connector, 50 ? (female) |
| Real-Time instantaneous bandwidth | 40 MHz |
| Scan Rate | up to 40 GHz/s (RBW @ 100 kHz) |
| RBW (RT Spectrum) | 1 Hz - 800 kHz |
| RBW (Scan Spectrum) | 1 Hz - 6.25 MHz |
| CBW (Level Meter) | 25 Hz - 40 MHz |
| EMC Filter BW (Spectrum and Level Meter) | 10 Hz, 100 Hz, 200 Hz, 1 kHz, 9 kHz, 10 kHz, 100 kHz, 120 kHz & 1 MHz |
| Detectors (Spectrum and Level Meter) | +Pk, RMS, -Pk, Avg & Sample |
| Internal reference frequency | < 1 ppm |
| IP2 | 4 MHz > f > 42 MHz > 60 dBm 42 MHz < f < 8 GHz 40 dBm (typ.) |
| IP3 | 3 MHz < f < 44 MHz 26 dbm typ. 44 MHz < f < 3 GHz 14 dBm typ. 3 GHz < f < 8 GHz 12 dBm (typ) |
| 100 % for signals longer than 3.125 us @ RBW = 800 kHz and 75 % FFT Overlap |
|
| External power supply | Basic unit, DC input: 10 to 48 VDC AC adapter, input: 100V-240VAC, output: 12VDC, 5.5A |
| Battery | 2 x Lithium-ion rechargeable battery pack, hot-swappable during operation Operating time: approx. 3 hours (typical, with both batteries) Charging time: approx. 4.2 hours (nominal, with both batteries charging in base device) Charging time: approx. 3 hours (nominal, with external charger) |
| GNSS | Embedded receiver and antenna (GPS/QZSS, GLONASS, BeiDou, Galileo) 1 x SMA, 50 ?, female |
| Memory | SSD: mSATA 58 GB microSD (SDXC) / USB 2.0 / USB 3.0 |
| 10 MHz Reference input | 1 x SMA-connector, 600 ? (female) |
| PPS/Trigger input | 1 x SMA, 100 k? (female) |
| Ethernet | 1 x GigE (10/100/1000Base-T), RJ45 |
| USB (Host) | 1 x USB 3.0, 1 x USB.2.0 |
| Operating temperature: | -10 deg to +55 deg C |
| Dimensions | 230 mm x 335 mm x 85 mm (Remote: 435 mm x 220 mm x 204 mm) (Outsdoor: 151 mm x 356 mm x 353 mm) |
| Weight | 4.1 kg (Remote 2.1 kg, Outdoor 13 kg) |
NARDA SignalShark
Analyzers for detecting, locating and classifying RF signals and interference, ideal for tracing accidental, illegal, or deliberate interference or potentially dangerous signal sources. Remotely controllable analyzers for spectrum monitoring and frequency management.
